    • Safe Route in the Sky, Always Correct Position

    The Radio Navigation System is a high performance, precision navigation solution specifically developed for integration into civillian and military aircraft, ensuring accurate positioning and reliable guidance in all operational environments.

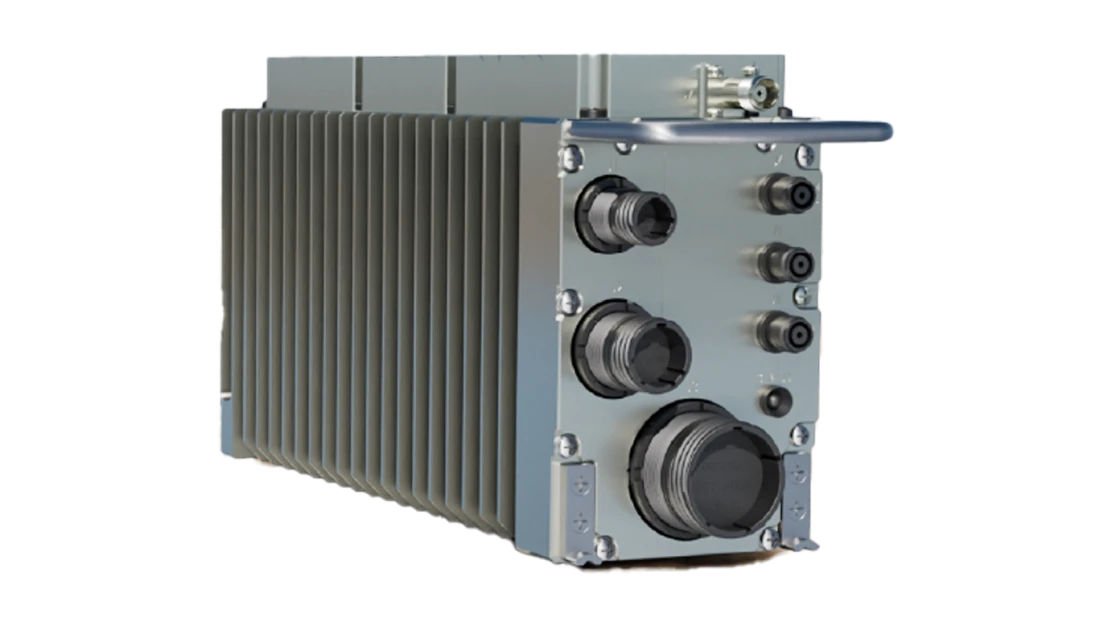

    RNE

    • A configurable, SWaP-C-optimized, DO-178C and DO-254 compliant, integrated navigation solution that combines all VOR/ILS/MB, DME/TACAN, and ADF receiver/transmitter functions in a single device.
    • The SWaP-C system, measuring 90 mm (W) x 150 mm (H) x 295 mm (D) and weighing less than 4 kg, operates with 28 VDC primary and secondary input voltages and delivers efficient performance with a power consumption of 33 W.
    • Interfaces: ARINC-429, MIL-STD-1553B, Discrete, Audio, Maintenance (RS-485).
    • Environmental Qualifications: DO-160G, MIL-STD-810G; Operational Temperature: -55°C to +70°C, up to 55,000 ft; Storage temperature: -55°C to +85°C.

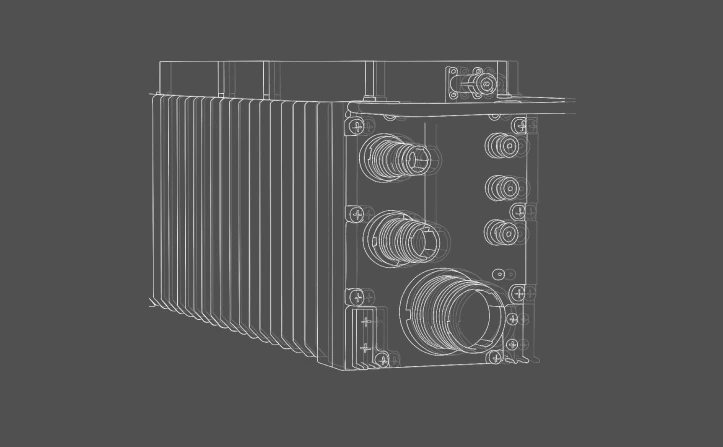

    RNE

    RNE Teknik Özellikler



    Çalışma Sıcaklığı:
    		-55°C / +70°C @ 55.000 ft
    Depolama:
    		-55°C / +85°C
    Boyut (Tutma sapı dahil):
    		90 mm (Yükseklik) x 150 mm (Genişlik) x 295 mm (Derinlik)
    Çalışma Ortam Sıcaklık Aralığı
    		-30°C - 55°C
    Ağırlık (Montaj tepsisi dahil):
    		< 4 kg
    Güç Tüketimi
    		33 W
    Besleme Gerilimi (birincil ve ikincil girişler):
    		28 VDC
